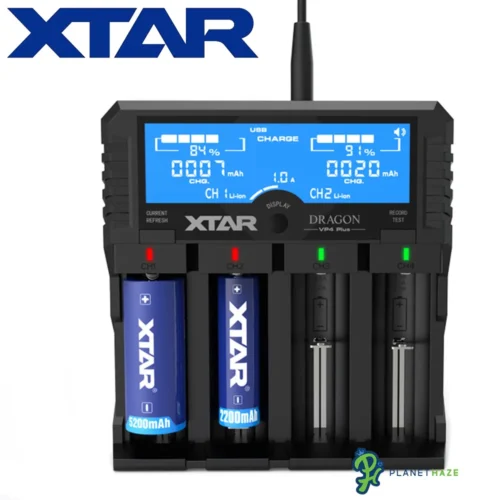

XTAR Dragon VP4 Plus Battery Charger

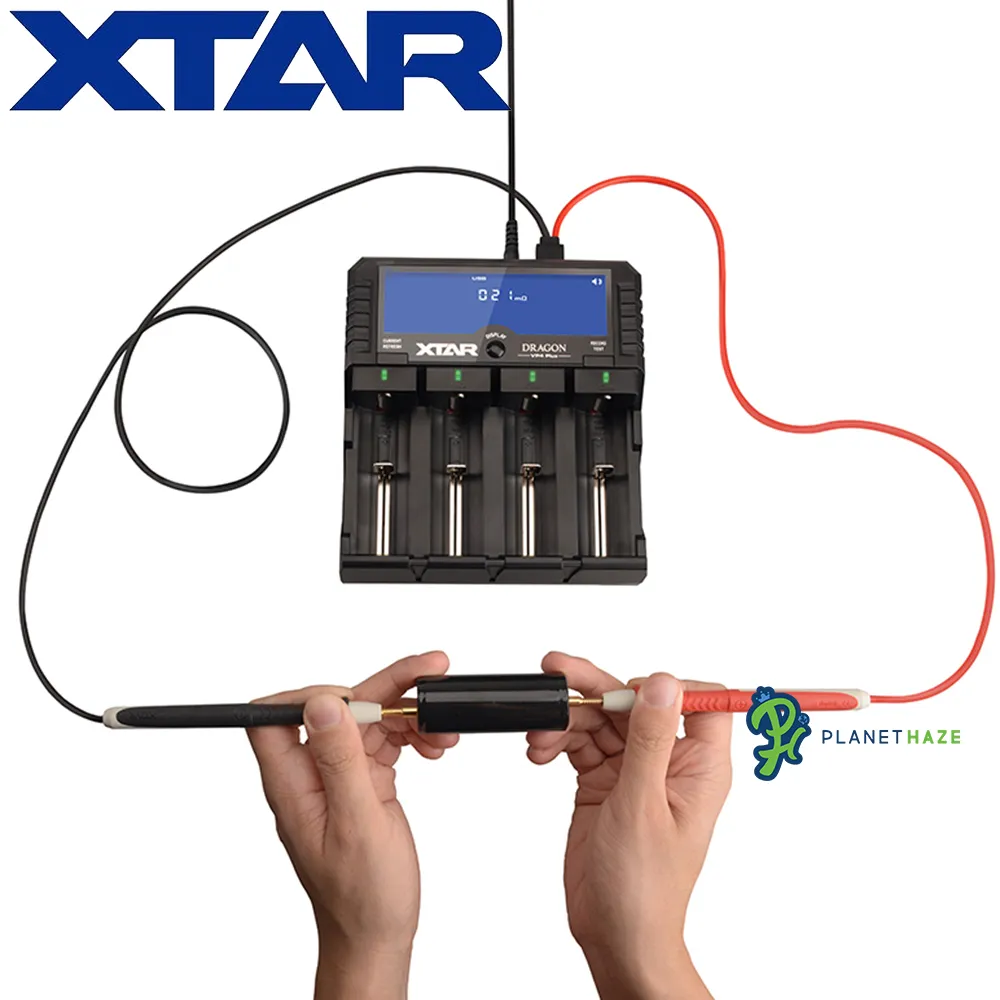

XTAR Dragon VP4 Plus Battery Charger is your personal battery doctor. The Dragon VP4 Plus can test battery internal resistance and voltage as well as test battery real capacity by precisely measuring the voltage and internal resistance of your battery as a multi meter.

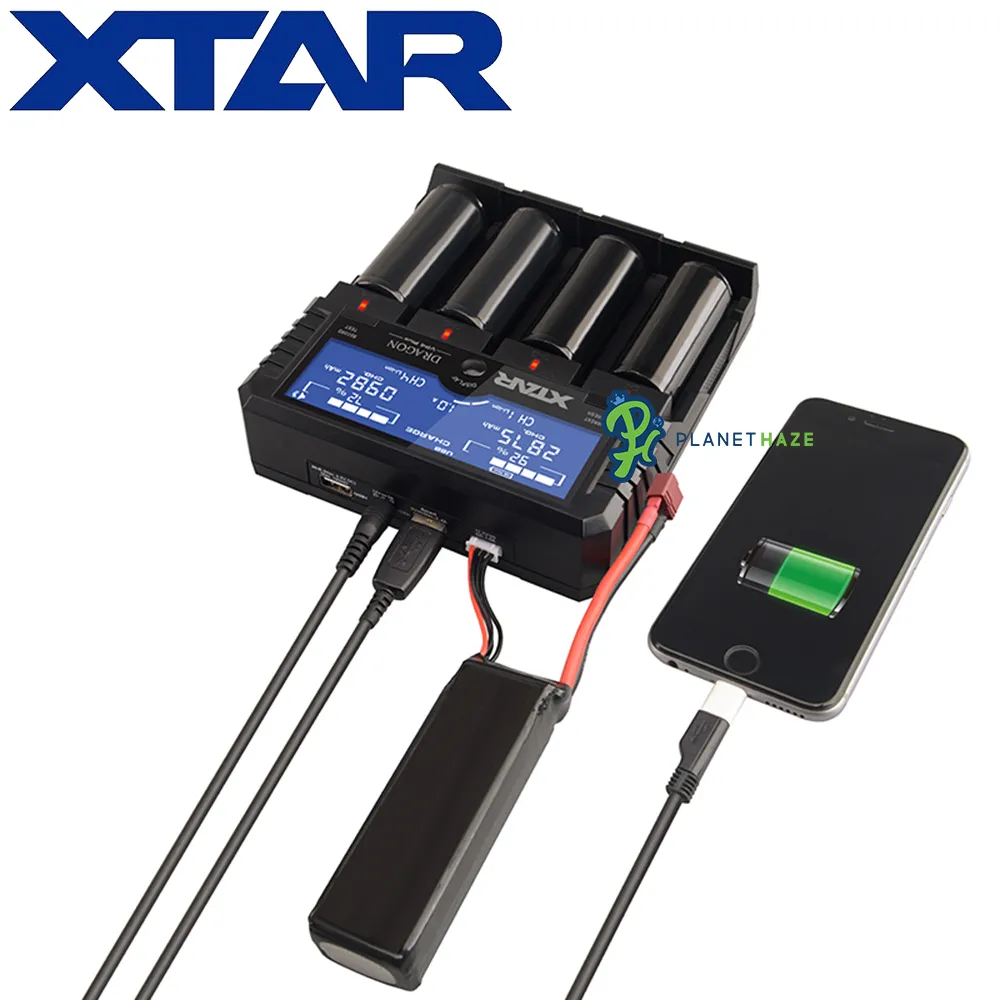

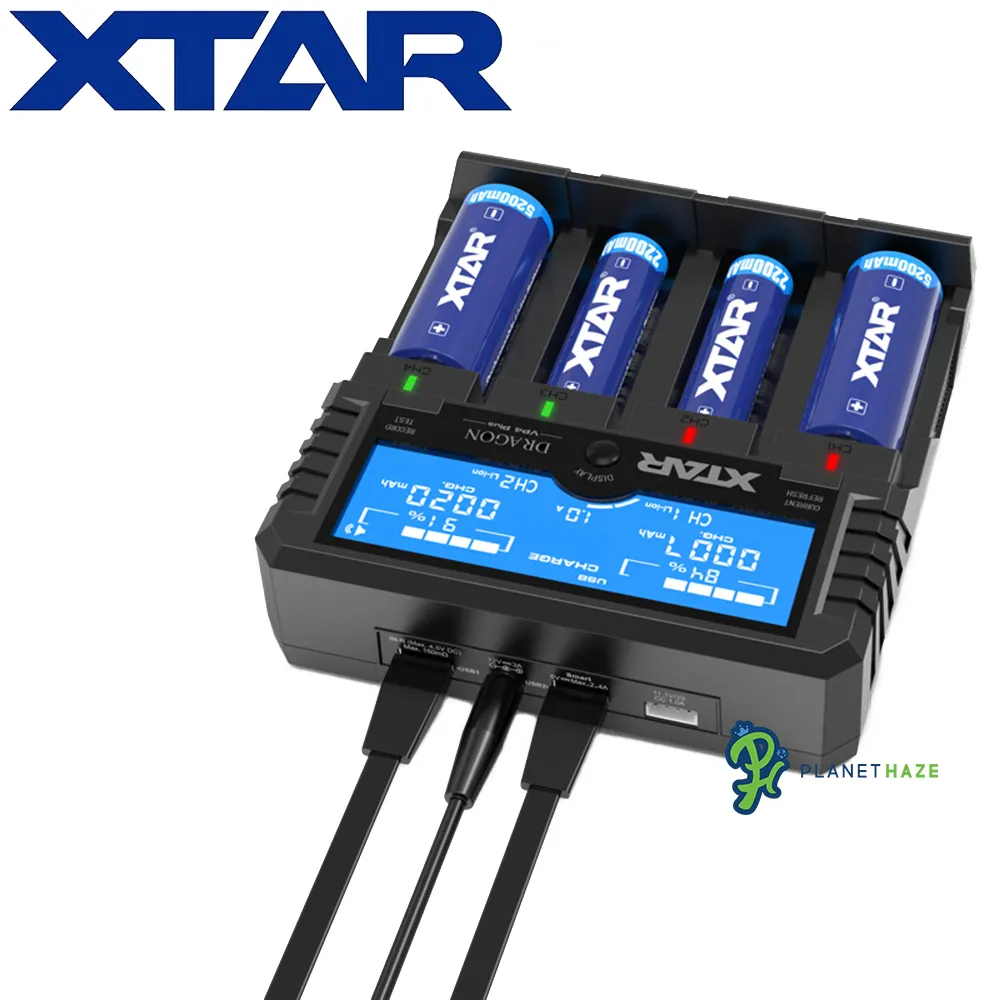

The Dragon VP4 can recognize / display / charge Ni-MH and Li-ion batteries at the same time and it also displays the charging current, battery / battery pack status, battery capacity percentage, battery type and channels, battery voltage, battery resistance, charge / test / refresh status and 3S Pack / USB Output status. The Alert Tone function can be enabled or disabled.

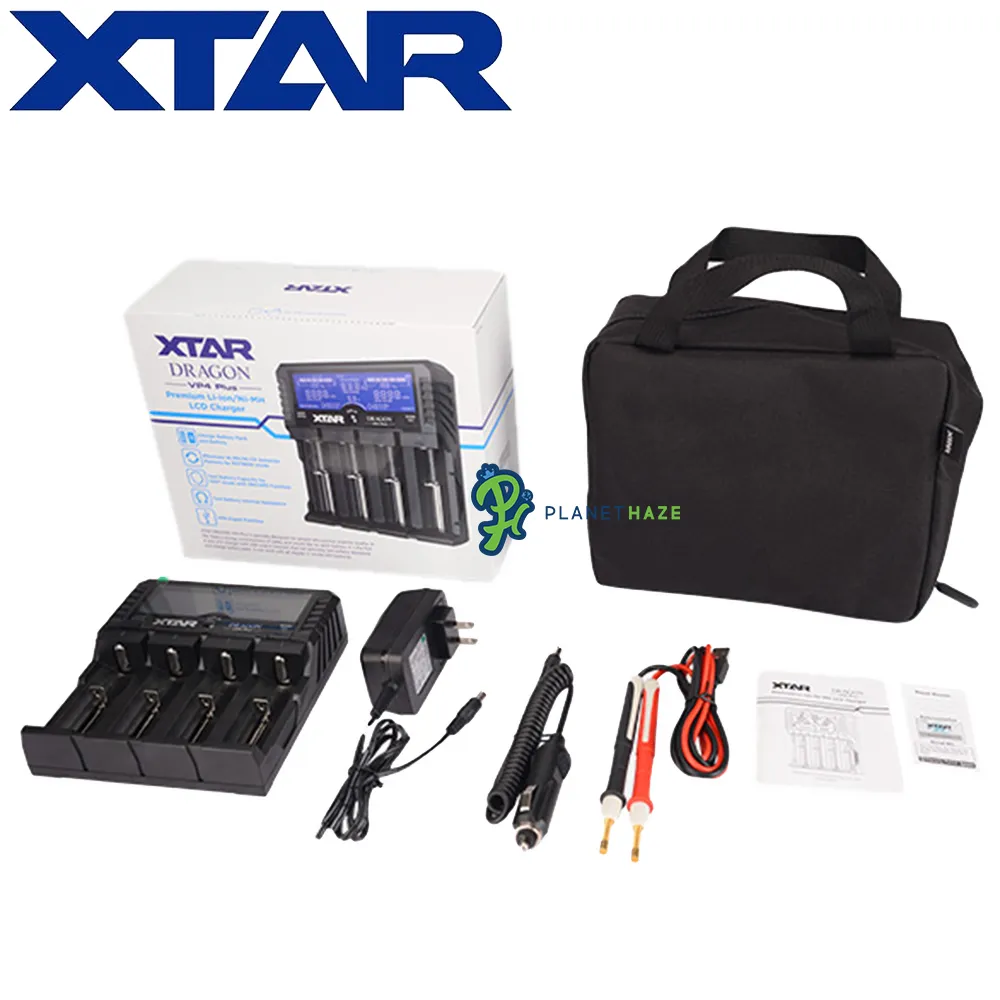

Includes:

• (1) x XTAR Dragon VP4 Plus Battery Charger

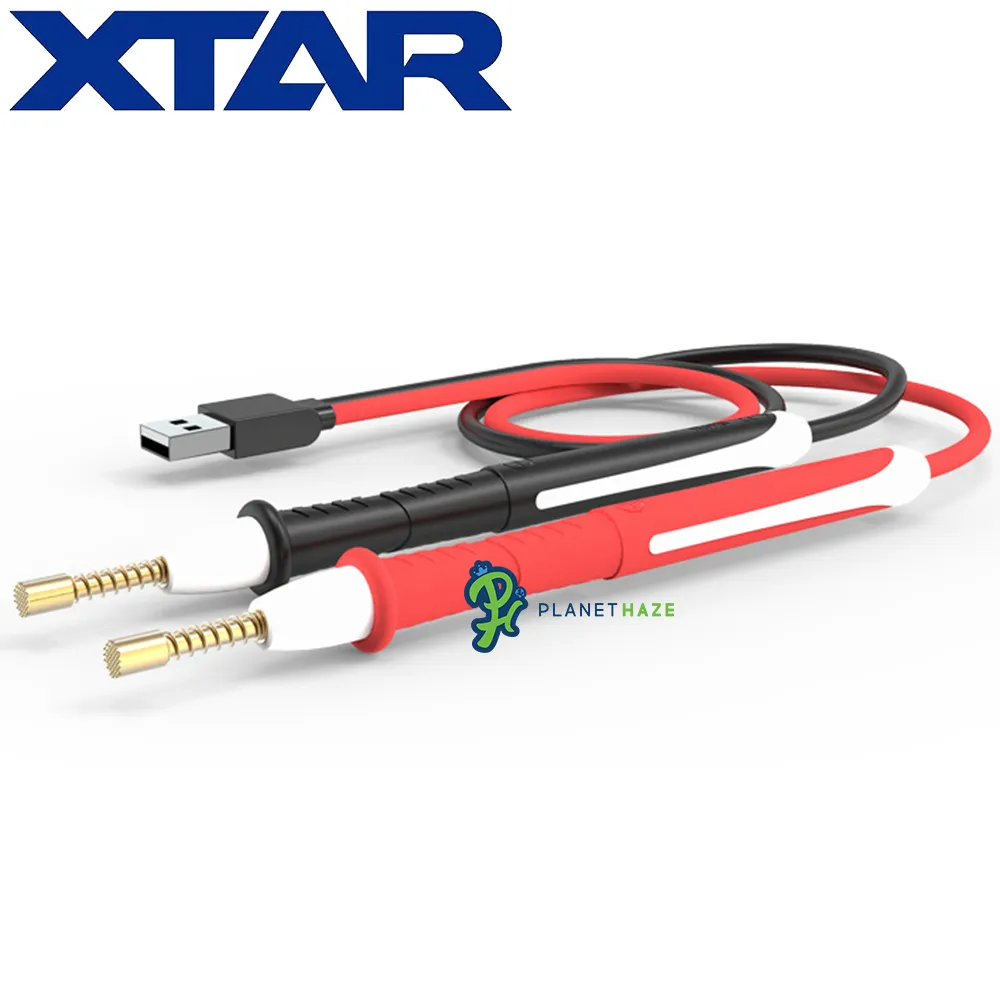

• (1) x Pair of Probes
• (1) x 12V 3A Adapter
• (1) x 3A Car Adapter
• (1) x Charger Pouch Storage and Travel Bag
• (1) x User Manual
• (1) x Warranty Card

Features:

• Charging Current Automatically Recognizes and Adjusts Current. Optional 0.5A / 1.0A / 2.0A Charge Currents Are Available To Customize Your Charging
• All 4 Channels Are Independent. CH1 and CH4 0.5A / 1.0A / 2.0A, CH2 and CH3 0.5A / 1.0A
• Automatic Identification of Various Li-ion and Ni-MH Rechargeable Batteries
• Compatible with Li-ion / IMR / INR / ICR 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 20700, 21700, 22650, 25500, 26650, 32650 3.6V and 3.7V
• Compatible with Ni-MH / Ni-CD AAAA, AAA, AA, A, SC, C, D, 11.1V/3S Battery Pack
• Charge Li-ion and Ni-MH Batteries At The Same Time
• 0.5A, 1.0A and 2.0A Charging Current, Just Insert in the Slot to Choose the Current Best Suited to Your Batteries. Only CH1 and CH4 have 2.0A Charging Current. Using CH2 and / or CH3, Channels Will be 0.5A or 1.0A
• Employs Battery Life Optimization Charging Algorithms, Accurate Cut-off, Quick Charging and Never Overcharge Batteries
• Elaborate Heat Dissipation Design Keeps Charging Temperatures Impressively Low
• 0V Activation Function Revives Low Voltage Batteries, Bring Over Discharged Batteries Back to Life
• Certified by CE, RoHS, FCC, Uses Low Voltage Safety Technology, Temperature Monitoring, Flame Retardant Materials, Reverse Polarity and Short Circuit Protection
• 2 Year Manufactures Warranty

Technical Parameters:

• Input Power: 12V DC / 3.0A
• 11.1V/3S Battery Pack Charging Current: 1.0A
• Cut Off Voltage: Li-ion 4.2v (+/- 0.05V) / Ni-MH 1.45v (+/- 0.1V)
• Operating Temperature: 0-40C
• Net Weight: 345g
• Dimensions: Length 158mm, Width 147mm, Height 40mm
